Ortofon Stylus DJ
Ortofon Stylus DJ
Highlights
Replacement Stylus for the Ortofon Concorde DJ MK2 Cartridge
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!

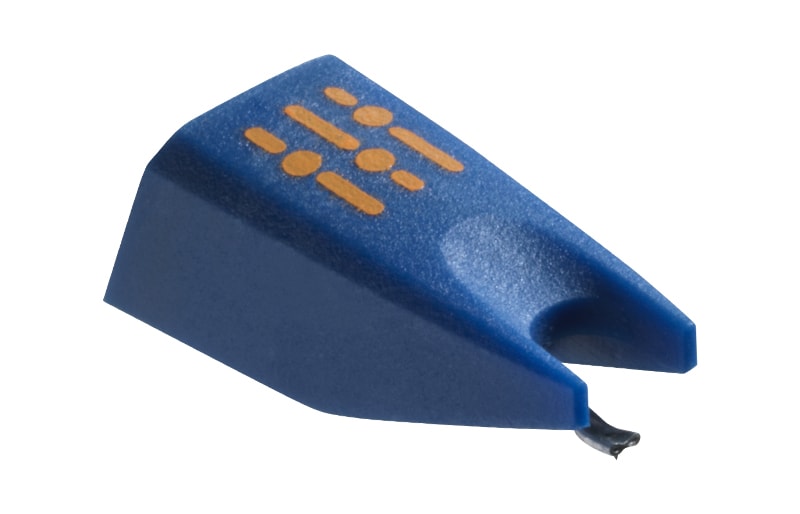

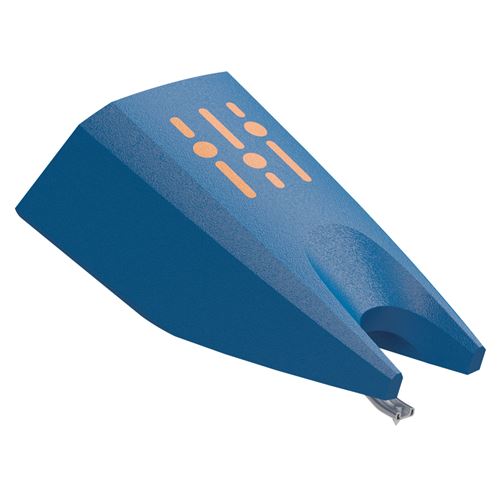

Ortofon Concorde DJ MK2 Replacement Stylus
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
- Cartridge Features:
- Larger, wider and more robust stylus body
- Easier to grip and handle
- Better fix by metal spring
- Tactile feedback of correct mount
- Large stylus viewing cut-out
| Output voltage at 1000Hz, 5cm/sec.: | 6 mV |
| Channel balance at 1kHz: | 1 dB |
| Channel separation at 1kHz: | 22 dB |
| Channel separation at 15 kHz: | 15 dB |
| Frequency range at -3dB: | 20-20.000 Hz |
| Tracking ability at 315 Hz at recommended tracking force: | 100 ?m |
| Compliance, dynamic lateral: | 14 micrometers/m N |
| Stylus type: | Spherical R 18 micrometers |
| Tracking force range: | 3 - 5 g |
| Tracking force recommended: | 4 g |
| Recommended: | Exclusively for Concorde MkII DJ |
