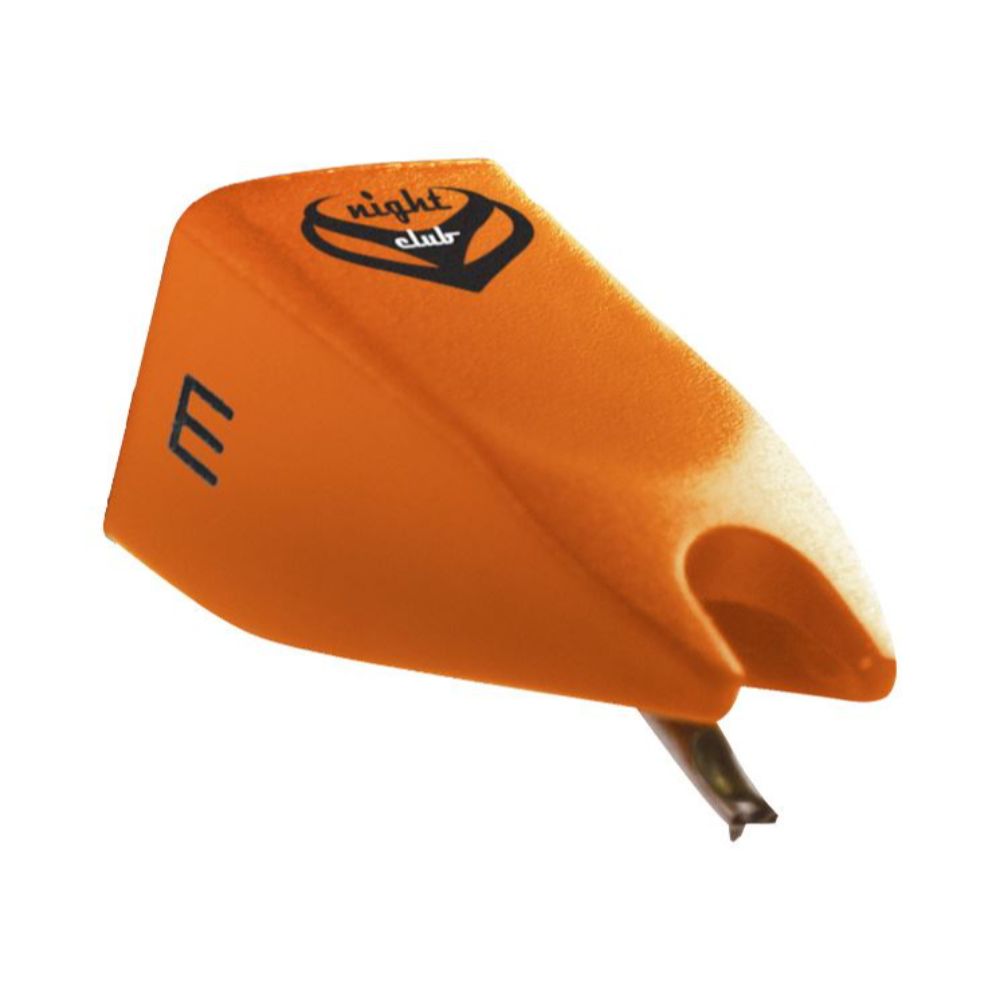

Ortofon Stylus Nightclub MKII
Ortofon Stylus Nightclub MKII
Replacement Stylus for the Ortofon Concorde Nightclub MK2 Cartridge, or Ortofon OM Nightclub MK2 Cartridge only.
Frequently bought together:
Following in the footsteps of the legendary Nightclub series, the re-engineered Ortofon Nightclub MkII boasts numerous sonic improvements in both club and studio settings.
With a new cartridge body, the Ortofon Nightclub MkII offers increased output voltage for powerful, energetic sound and enhanced performance from integrated phono preamps such as the ones found in DJ mixers. Superb sound quality!
Club DJ and studio workers believe the Nightclub MkII to be an absolute high-end cartridge. It is indeed a no-nonsense performer with fascinating musical resources. Its output is superb with a frequency response rating high enough to compare Ortofon Nightclub MkII to any audiophile cartridge. The special elliptical stylus guarantees sound with insignificant scratching.
- Compatible with cartridges - Ortofon Concorde Nightclub MK2 and Ortofon OM Nightclub MK2.
- **Not for use with any other cartridge**
| Output voltage at 1000Hz, 5cm/sec.: | 8 mV |
| Channel balance at 1kHz: | 1.5 dB |
| Channel separation at 1kHz: | 23 dB |
| Channel separation at 15 kHz: | 15 dB |
| Frequency range at -3dB: | 20-22.000 Hz |
| Frequency response: | 20-20.000 Hz +/- 1.5 dB |
| Tracking ability at 315 Hz at recommended tracking force: | 80 micrometre |
| Compliance, dynamic lateral: | 20 micrometre/m N |
| Stylus type: | Special Elliptical |
| Stylus tip radius: | r/R 13/25 micrometre |
| Tracking force range: | 2.0-5.0 g (20-50 mN) |
| Tracking force recommended: | 3.0 g (30 mN) |
| Tracking angle: | 20° |
| Internal impedance, DC resistance: | 1.000 Ohm |
| Internal inductance: | 580 mH |
| Recommended load resistance: | 47 kOhm |
| Recommended load capacitance: | 200-600 pF |
| Concorde cartridge weight: | 18.5 g |
