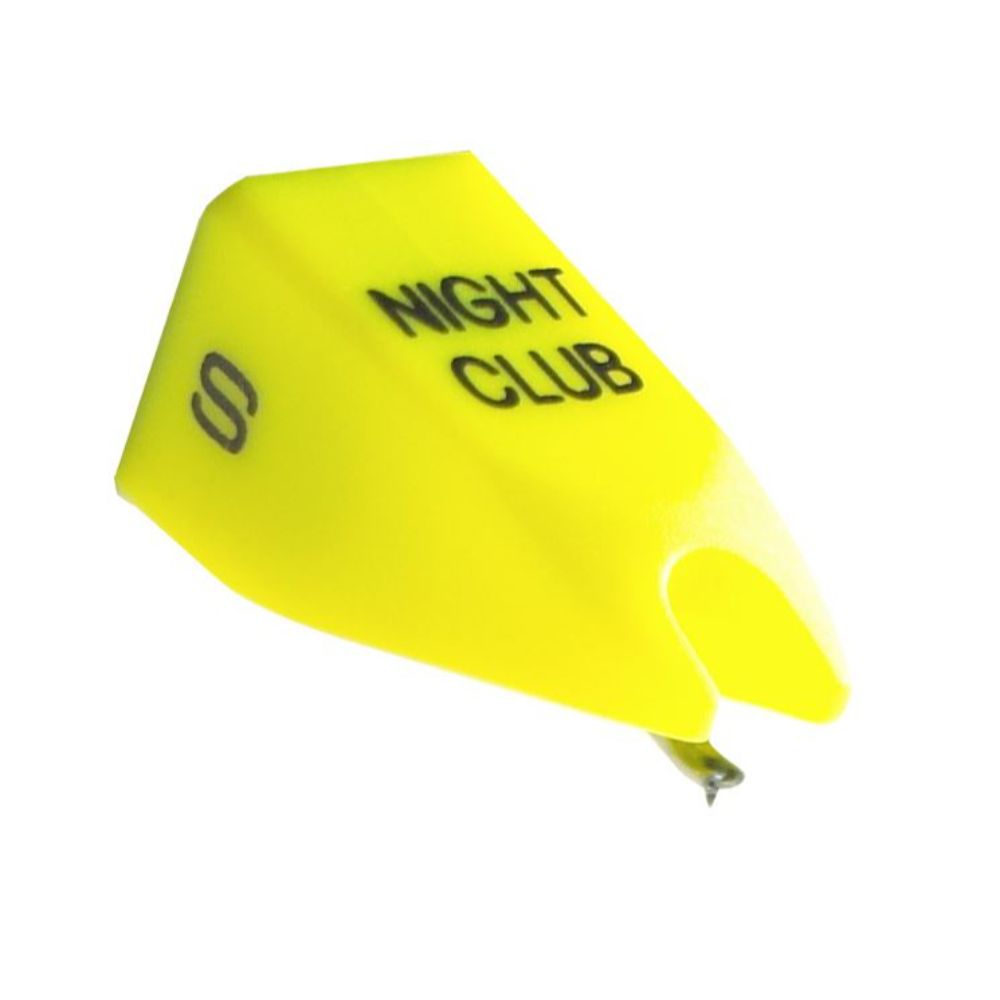

Ortofon Stylus Nightclub S
Ortofon Stylus Nightclub S
Highlights
Replacement Stylus for the Ortofon Nightclub MK1 Cartridge - Spherical Stylus Version
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!
The Ortofon Nighclub S stylus is amongst the top performers in its category, Scratch and Mix.
A spherical diamond and a customised design provide the basis for the cartridge's undeniable supremacy.
The stylus remains in the groove during the scratching and back-cueing, making it unfailingly reliable - even when giving a night-long performance.
- Replacement Stylus for both the Ortofon Concorde Nightclub MK1 and the Ortofon OM Nightclub MK1
| Output voltage at 1000Hz, 5cm/sec.: | 6 mV |
| Channel balance at 1kHz: | 1.5 dB |
| Channel separation at 1kHz: | 23 dB |
| Channel separation at 15 kHz: | 15 dB |
| Frequency range at -3dB: | 20-22.000 Hz |
| Frequency response: | 20-18.000 Hz +3 / - 2 dB |
| Tracking ability at 315 Hz at recommended tracking force: | 80 micrometre |
| Compliance, dynamic lateral: | 7 micrometre/m N |
| Stylus type: | Spherical |
| Stylus tip radius: | R 18 micrometre |
| Tracking force range: | 2.0-5.0 g (20-50 mN) |
| Tracking force recommended: | 3.0 g (30 mN) |
| Tracking angle: | 20° |
| Internal impedance, DC resistance: | 750 Ohm |
| Internal inductance: | 450 mH |
| Recommended load resistance: | 47 kOhm |
| Recommended load capacitance: | 200-600 pF |
| Concorde cartridge weight: | 18.5 g |
