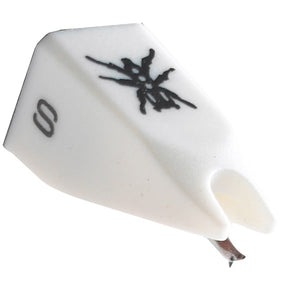

Ortofon Stylus Q.Bert
Ortofon Stylus Q.Bert
Highlights
- High tracking ability, unsurpassed handling
- Ultra high output!
- Low wear characteristics that literally put it in a class of its own
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!
Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivalled tracking ability and sonic characteristics. The Q.Bert features a more subdued high end, which helps to minimise surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage.
The Ortofon Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enormous output, it is perfect for scratch of all music with deep bass frequencies.
- Replacement Stylus for both the Ortofon Concorde Q.Bert Cartridge and the Ortofon OM Q.Bert Cartridge
| Output voltage at 1000Hz, 5cm/sec: | 11 mV |
| Channel balance at 1kHz: | 1.5 dB |
| Channel separation at 1kHz: | 22 dB |
| Frequency range at -3dB: | 20-20.000 Hz |
| Frequency response: | 20-20.000 Hz -3dB |
| Tracking ability at 315 Hz at recommended tracking force: | 90 micrometers |
| Compliance, dynamic lateral: | 12 micrometers/m N |
| Stylus type: | Spherical |
| Stylus tip radius: | R 18 micrometers |
| Tracking force range: | 2.0-4.0 g (20-40 mN) |
| Tracking force recommended: | 3.0 g (30 mN) |
| Tracking angle: | 20 degrees |
| Internal impedance, DC resistance: | 1,680 Ohm |
| Internal inductance: | 920 mH |
| Recommended load resistance: | 47 kOhm |
| Recommended load capacitance: | 200-400 pF |
| Concorde cartridge weight: | 18.5 g |
| Compatible with cartridges: | Concorde Q.Bert and OM Q.Bert |
