Ortofon Stylus Scratch

Ortofon Stylus Scratch

Ortofon Stylus Scratch
Highlights

Replacement Stylus for the Ortofon Concorde Scratch Cartridge, or Ortofon OM Scratch Cartridge only.

Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £39.00 £0.00 Unit price per
Out of Stock

Out of Stock

Call us for the
latest availability
020 8579 0144

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

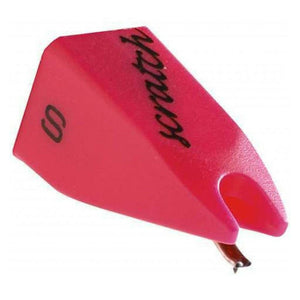

As implied by the name, the Ortofon Scratch is intended especially for the disciplines of scratch and back-cueing.

It is made of a fluorescent neon-red material with the intention it becoming highly apparent in spotlight and luminous in ultraviolet light. For DJs that require increased tracking ability, the Scratch is up to the task.

Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

Very high output! Maximum scratch performance guaranteed!

  • Compatible with cartridges - Ortofon Concorde Scratch and Ortofon OM Scratch.
  • **Not for use with any other cartridge**
Output voltage at 1000Hz, 5cm/sec.: 7 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20.000 Hz
Frequency response: 20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force: 80 micrometre
Compliance, dynamic lateral: 6 micrometre/m N
Stylus type: Spherical
Stylus tip radius: R 18 micrometre
Tracking force range: 3.0-5.0 g (30-50 mN)
Tracking force recommended: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Concorde cartridge weight: 18.5 g
