W Audio TPX 650 Amplifier
W Audio TPX 650 Amplifier
Highlights
- 1U Rack Size
- 2 x 210W RMS at 8 ohms
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!

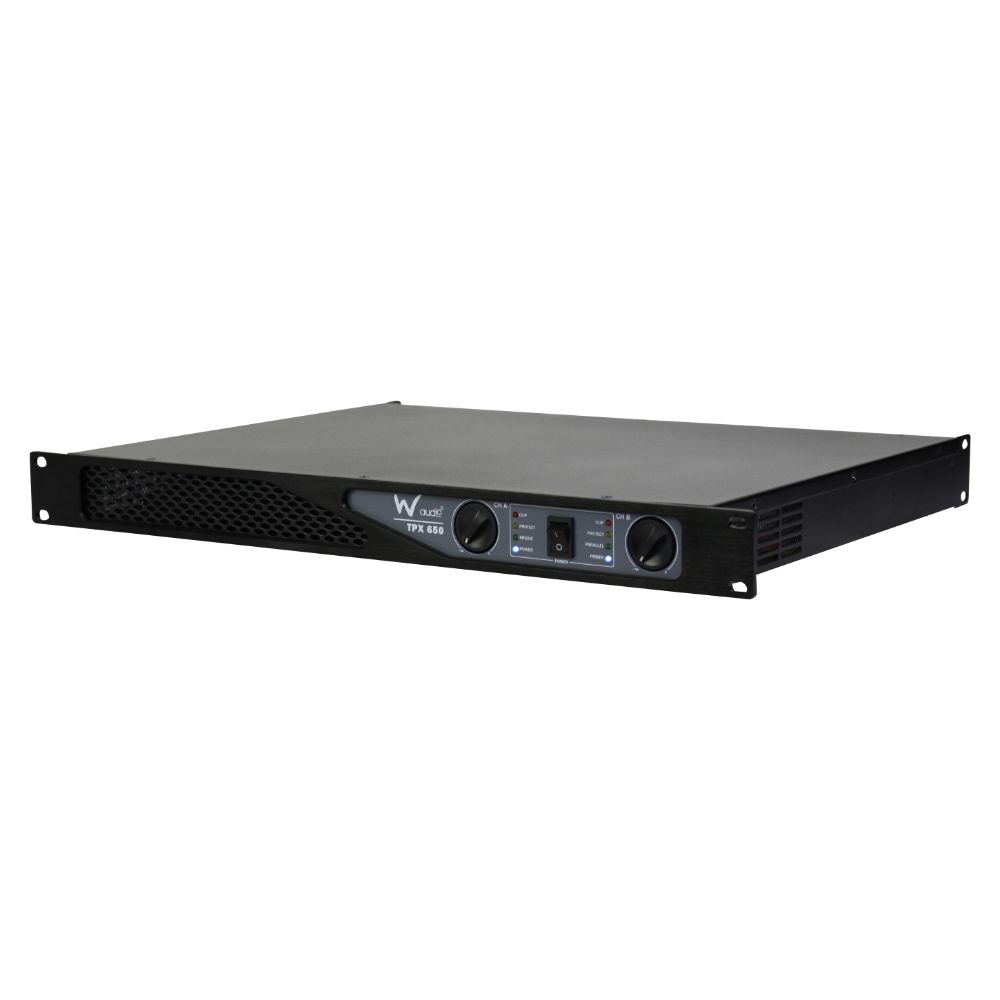

Occupying only 1 unit of space in your rack the TPX Series amplifiers deliver up to 650W of power. These lightweight amplifiers do not compromise when it comes to audio quality, using high quality components and low noise fans making them ideal for installation.

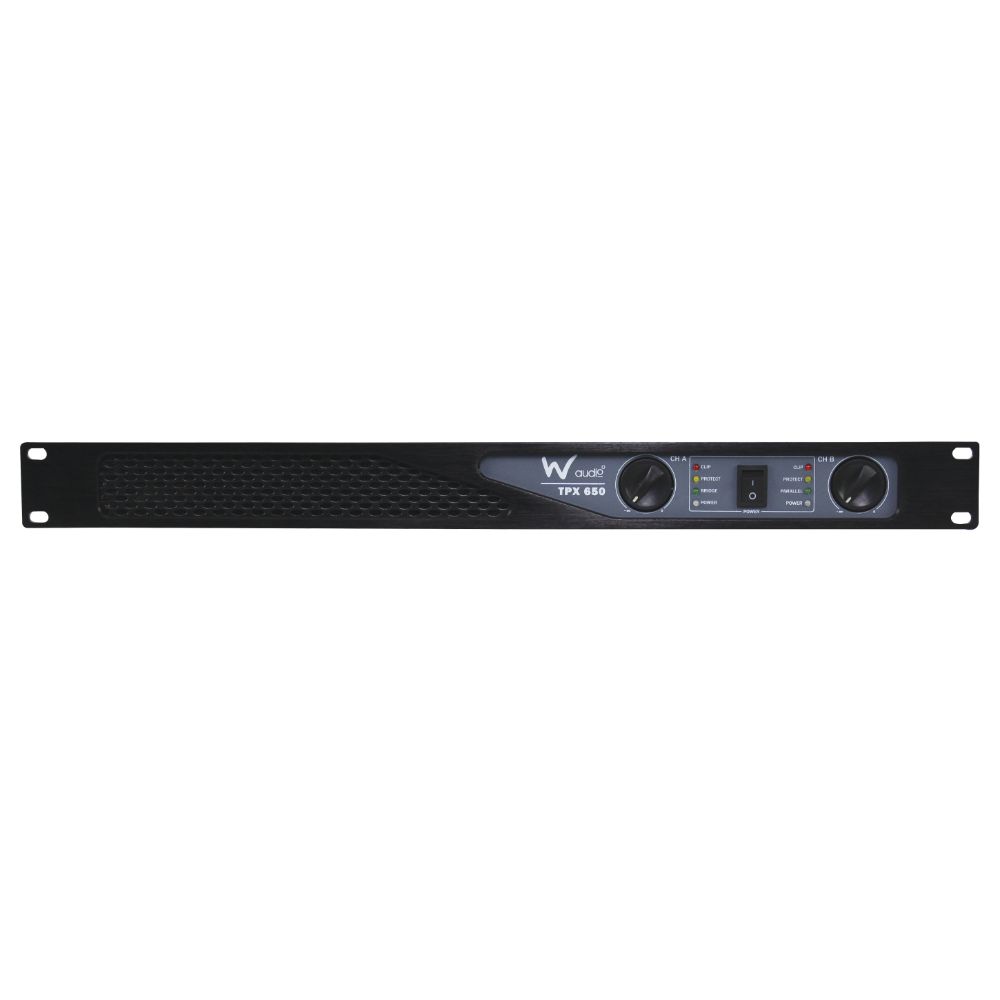

All models have protection against short circuit, DC, overheating, overloading and have a soft-start delay. LEDs on the front indicate power, signal, clipping and triggering of the protection circuit.
- 1U Rack Size
- 2 x 210W RMS at 8 ohms
- 2 x 325W RMS at 4 ohms
- Bridge 650W RMS at 8 ohms
- XLR or Large Jack (1/4") signal inputs
- SpeakON or Binding Post for speaker outputs
- (Bridge only via Binding Posts)
- 20Hz to 20kHz Frequency Response
- Ground lift
- Switchable Stereo, Parallel or Bridge
| Power Output: |
2 x 210W RMS at 8 ohms 2 x 325W RMS at 4 ohms Bridge 650W RMS at 8 ohms |
| Frequency response: | 20Hz to 20kHz |
| Input sensitivity: | 0.775V |
| Protection circuits: | Thermal, short circuit, overload, DC fault protection and AC power supply fuse |
| LED indicators: | Power, protect and clip |

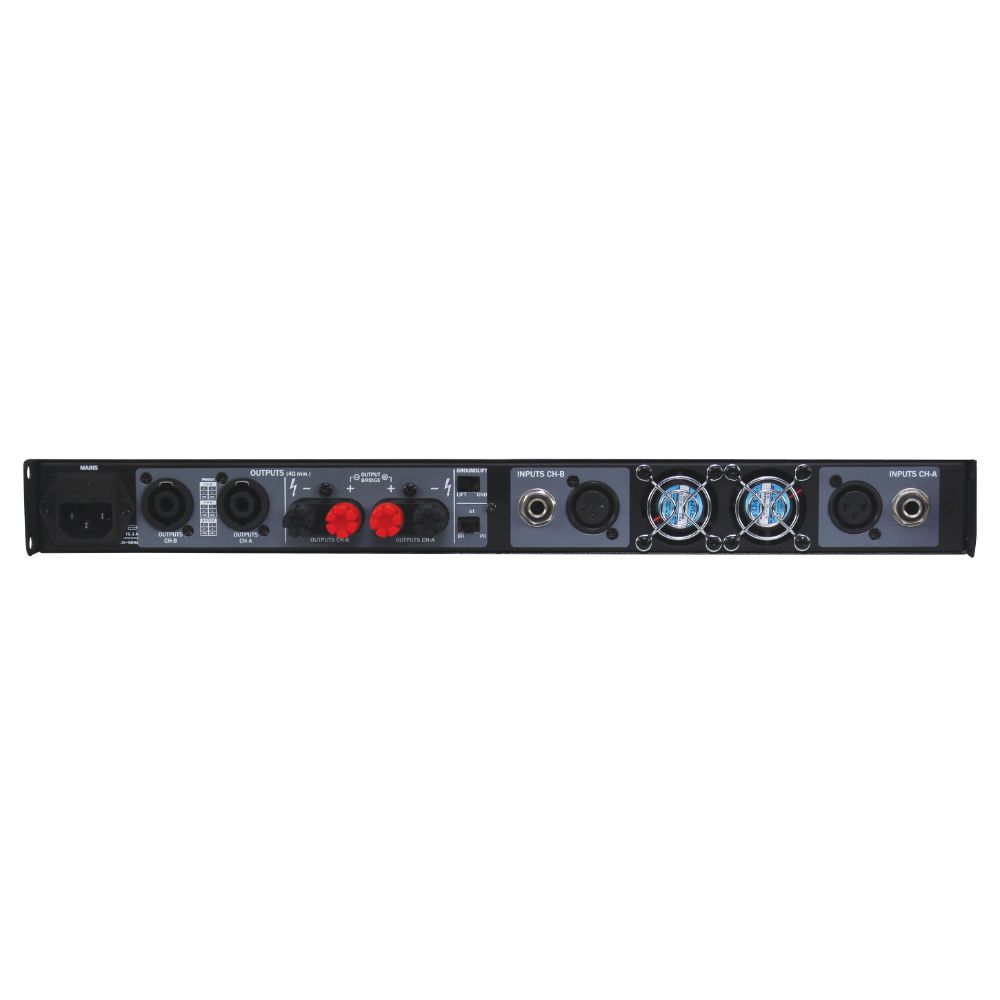

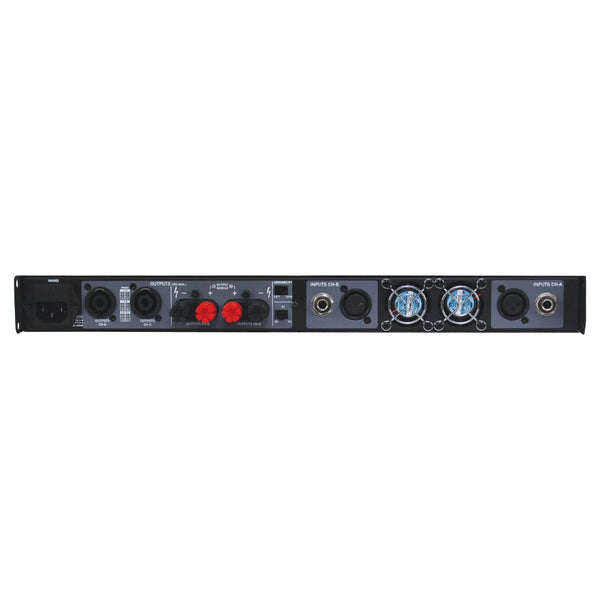

| Input connections: |
1 x IEC (power), 2 x XLR sockets (signal), 2 x 1/4" jack sockets (signal) |
| Output connections: |
2 x speakON connectors, 2 pairs of binding posts, bridge via binding post |
| Power supply: AC 240V/50Hz | |
| - Dimensions: 44 x 484 x 345mm | |
| - Weight: 9.4kg | |
