LD Systems PPA2 Phono Preamplifier and Equaliser
LD Systems PPA2 Phono Preamplifier and Equaliser
Highlights
- Ultra compact phono preamplifier and equaliser
- Proper RIAA equalisation
- RCA inputs and outputs
- 6.3 mm stereo headphone output connector
- Sturdy metal housing
- 12 V AC/DC adapter included
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!
The LD Systems PPA 2 is a very compact analogue phono preamplifier, which equalises the extremely low output signal of conventional turntables to RIAA standards. It allows you to connect to devices without any phono input, such as mixers, PA power amplifiers or sound cards.

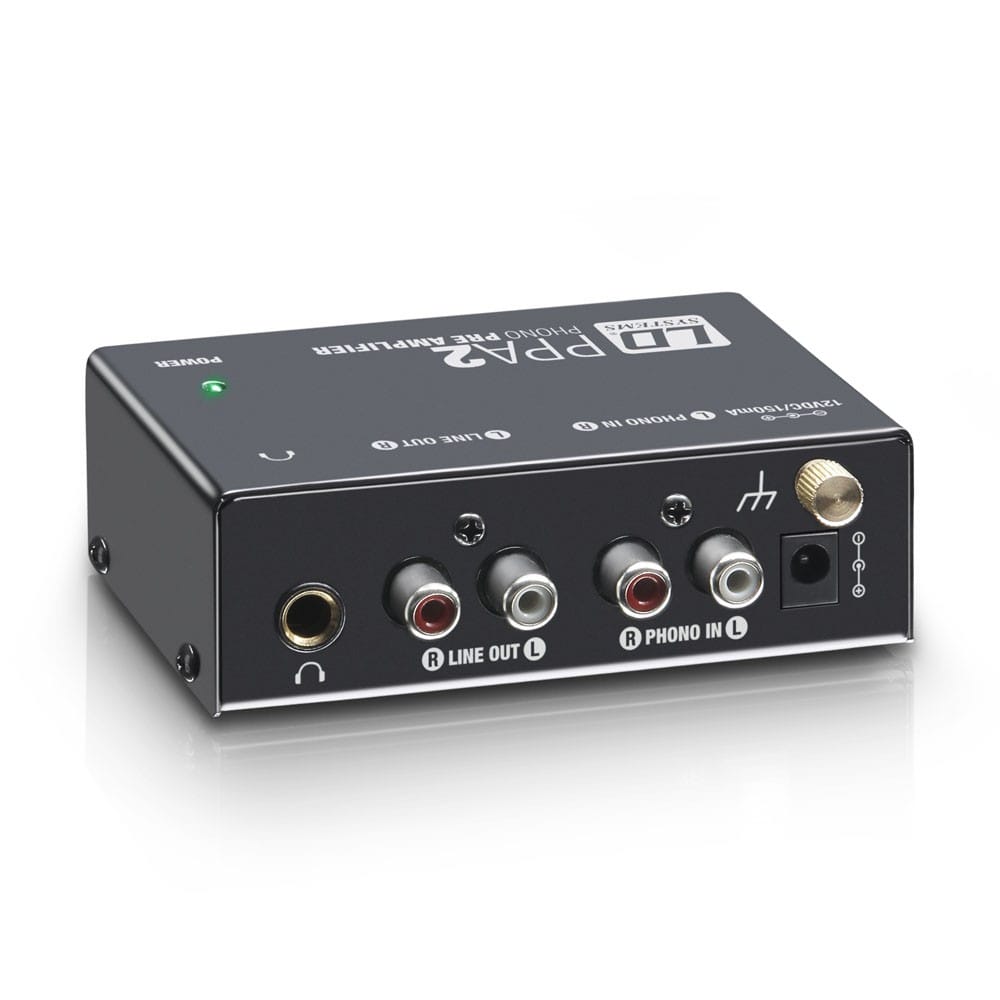

The phono inputs are designed as RCA jacks, just like the line outputs; the PPA 2 also has a screw terminal for the ground conductor of the turntable and a 6.3 mm stereo jack for connecting a headset. The THD factor of the preamplifier is below 0.05% and the channel separation is -75 dB.

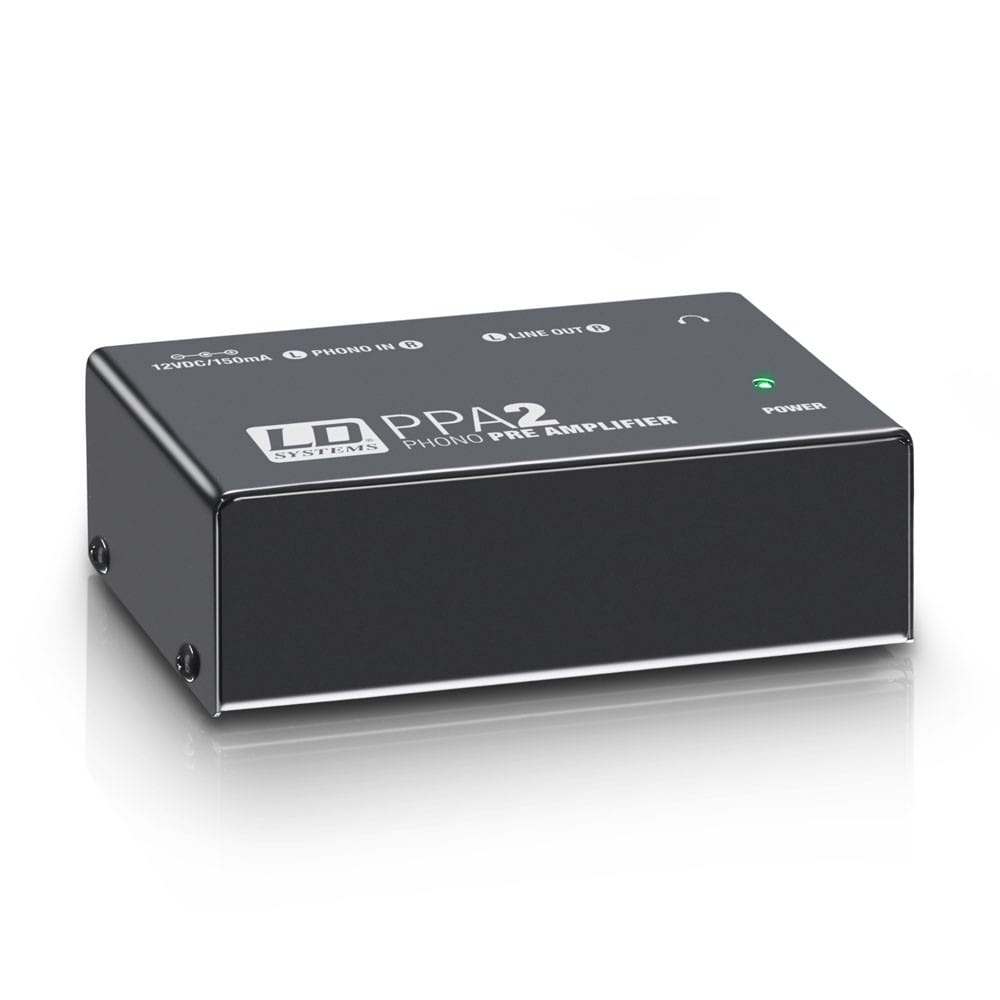

The LD Systems PPA 2 uses a 12 V AC adapter; a bright LED indicates the power supply on the top of the sturdy metal chassis.
- Ultra compact phono preamplifier and equalizer
- Proper RIAA equalization
- RCA inputs and outputs
- 6.3 mm stereo headphone output connector
- Sturdy metal housing
- 12 V AC/DC adapter included
| Product type: | Other Studio and Recording Equipment |
| Type: | Stereo Input / Stereo Output |
| Frequency response: | RIAA Curve Hz |
| Signal-to-noise ratio: | 70 dB |
| THD: | <0.05% |
| Crosstalk: | -75 dB |
| Max. input level: | -23.5 dBV |
| Max Output Level: | +10 dBV |
| Input impedance (kOhms): | 47 kOhm |
| Output impedance: | 50 Ohm(s) |
| Indicators power: | LED |
| Inputs: | 1 x Phono Stereo |
| Input connectors: | 2 x RCA, Earth terminal |
| Line outputs: | Headphones, Line Stereo |
| Line output connectors: | 2 x RCA, 6.3 mm TRS |
| Operating voltage: | External Power Supply |
| Operating voltage: | 12 V DC |
| Current draw: | 0.15 A |
| Width: | 104 mm |
| Height: | 36 mm |
| Depth: | 67 mm |
| Weight: | 0.28 kg |
