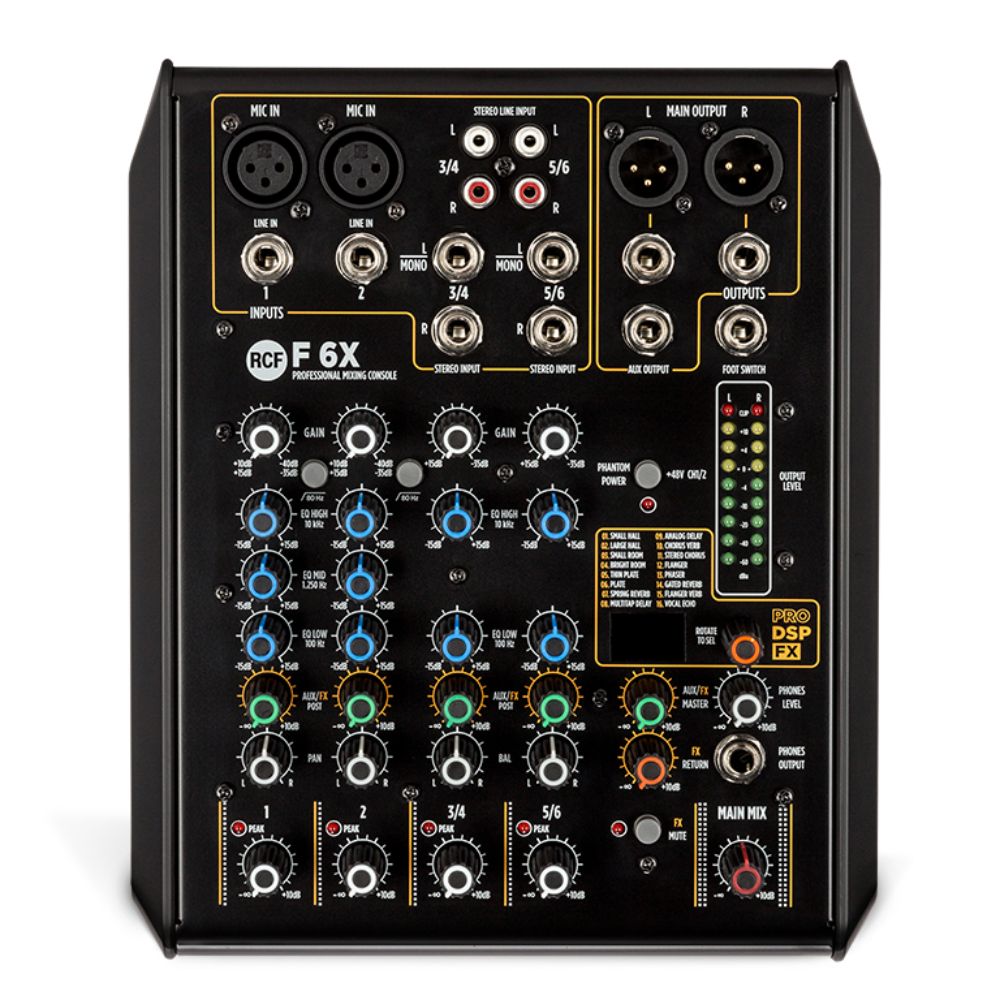

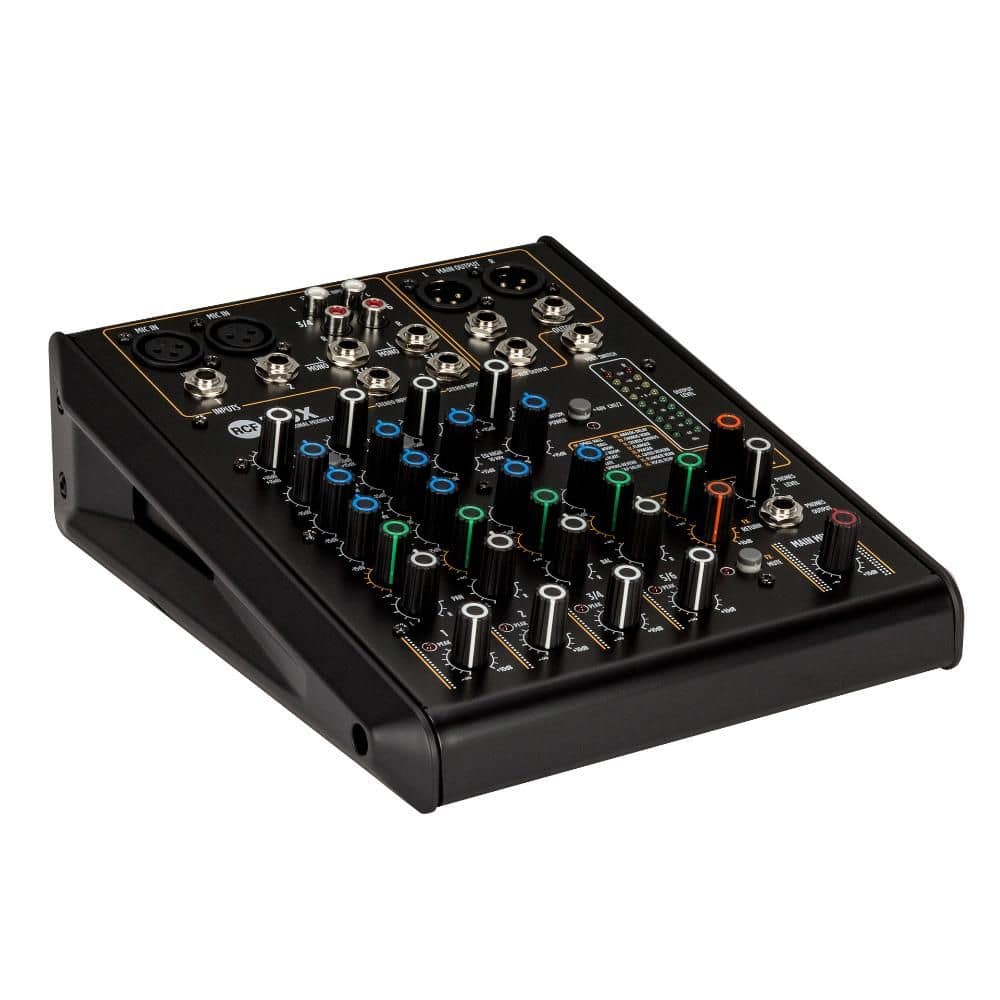

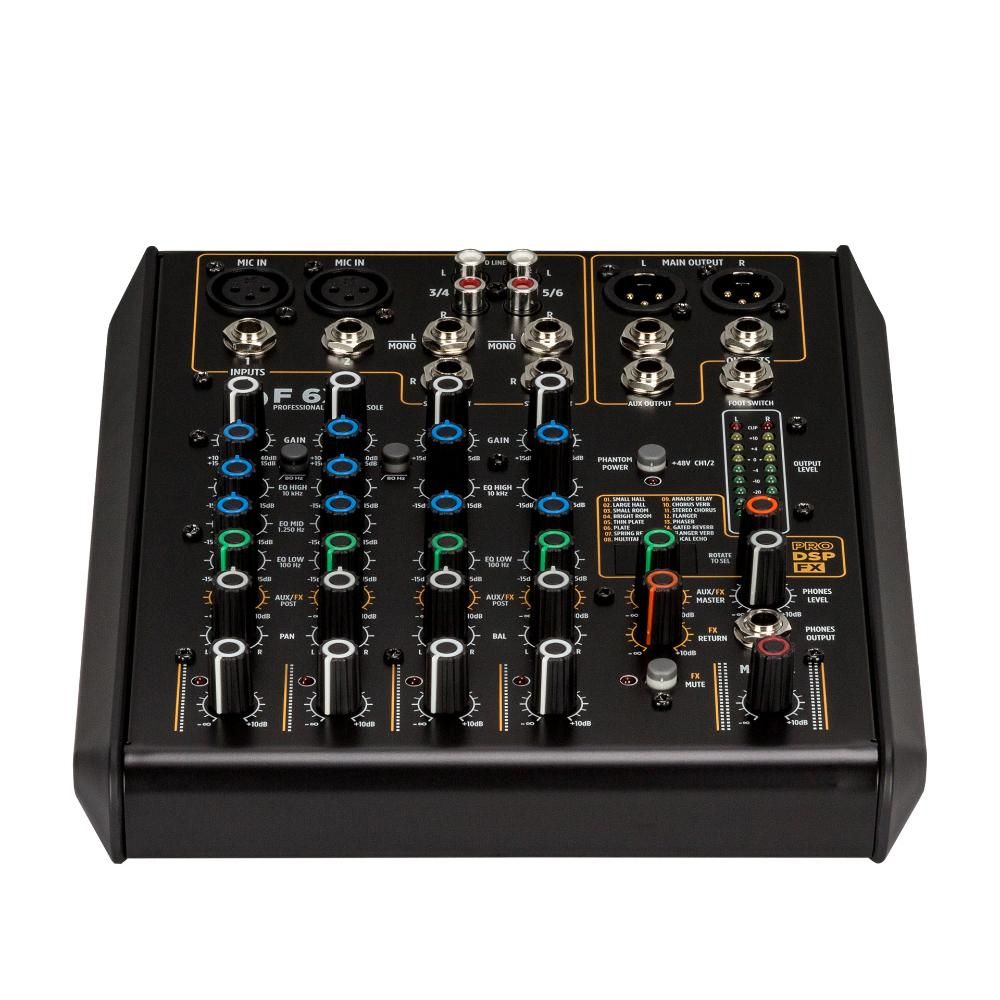

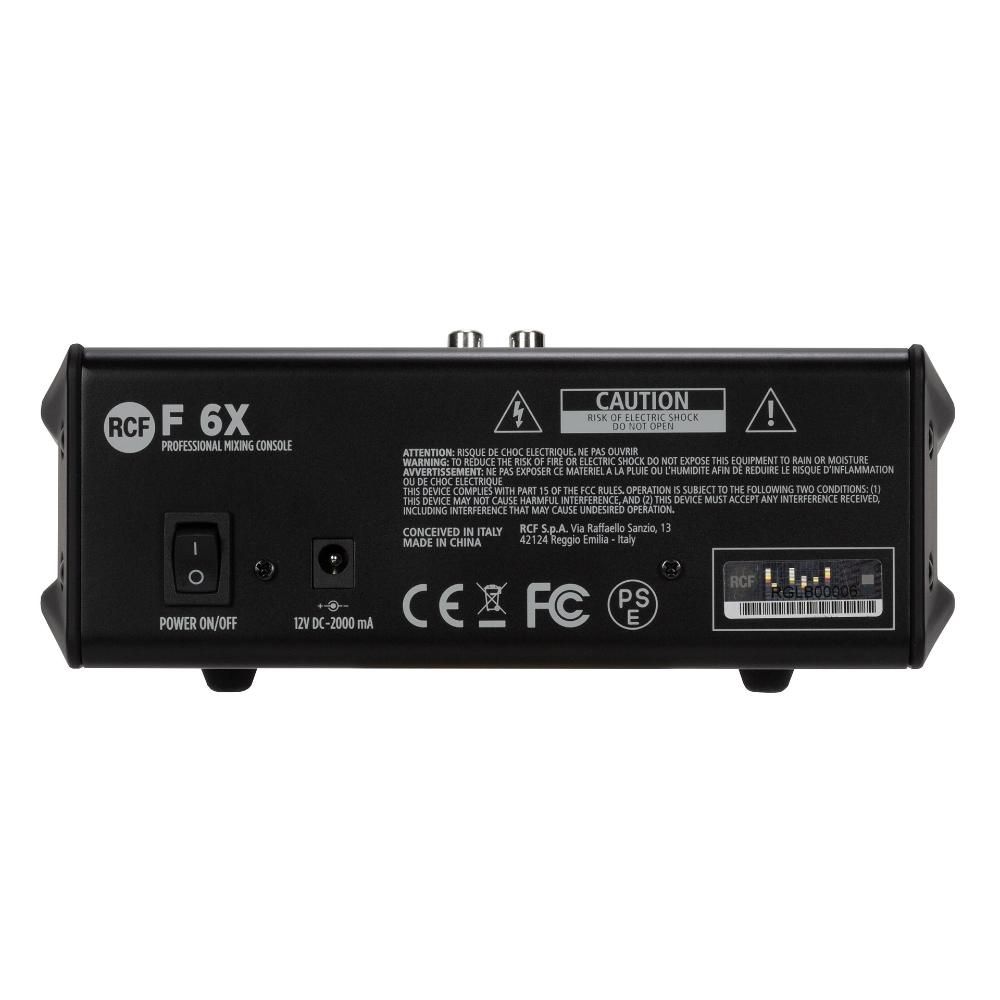

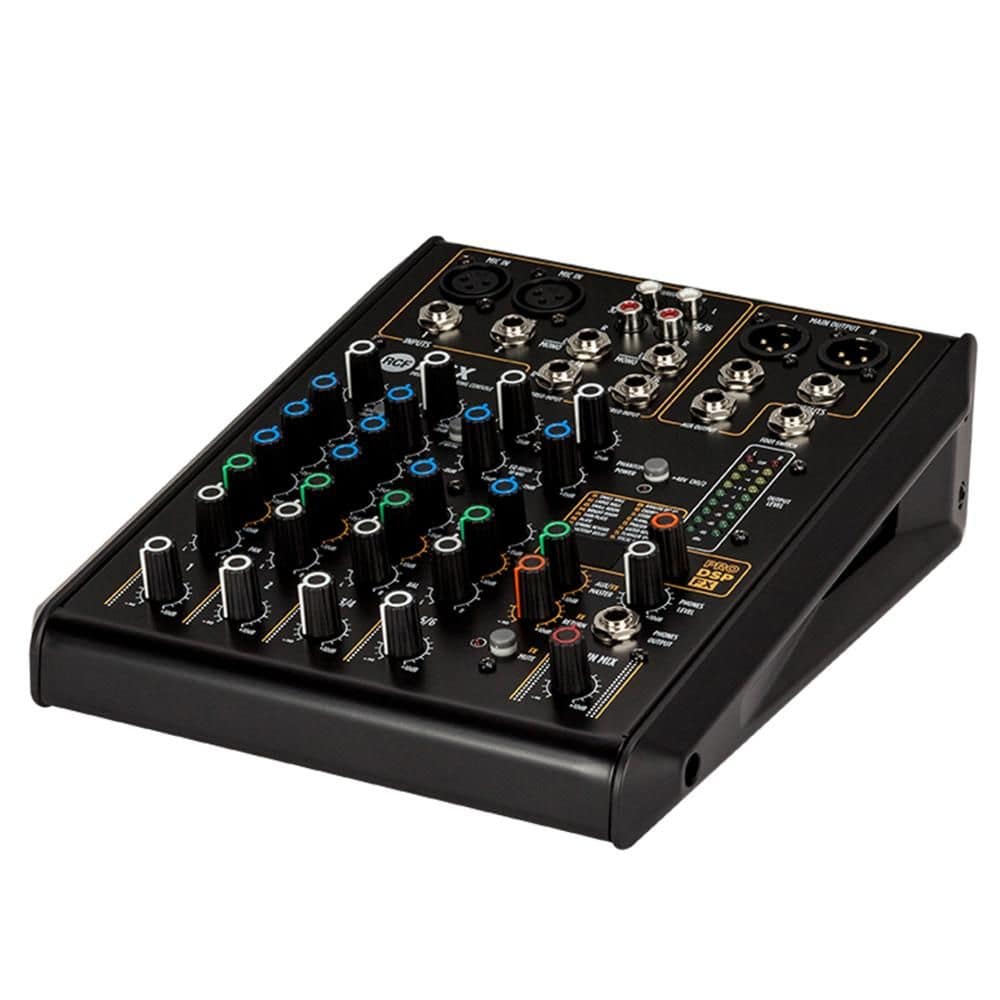

RCF F6X
RCF F6X
Highlights
- 2 Mic/Line inputs
- 2 stereo line inputs
On display in our
London Showroom
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels.
A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes.
- 2 Mic/Line inputs
- 2 stereo line inputs
- One Aux/FX (post)
- Balanced main output audio path from input to output
- 16 presets PRO DSP internal FX
- Sturdy metal chassis
- External universal power supply
- Designed and engineered in Italy
| Electronic Specifications | |
| Frequency Response: | 20 Hz - 20 kHz |
| THD+N: | <0.02% A-Weighted (20 dB gain, 0 dBu out) |
| Inputs | |
| Channels: | 6 |
| Mic: | 2 |
| Gain Range: | 0 dB - -50 dB |
| Input Noise Level: | -124 dBu A-Weighted |
| Mic Inputs Impedance: | 14 kOhm |
| Low Cut: | 80 Hz |
| Phantom Power +48V: | Yes |
| Mono Line: | 2 |
| Gain Selection: | 20 dB - -30dB |
| Line Input Impedance: | 21 kOhm |
| Stereo Line: | 2 |
| Gain Selection: | 20 dB - -30dB |
| Stereo Line Input Impedance (kOhm): | 15 kOhm |
| Input connectors: | XLR, Jack, RCA |
| Outputs | |
| Main MIX: | 1 |
| FX Send: | 1 |
| AUX Output: | 1 |
| Phone: | 1 |
| Output connectors: | XLR, Jack |
| Outputs Specifications | |
| Main Out Level: | 28 dBu |
| Aux Out Level: | 28 dBu |
| Phones Out impedance (ohm): | 150 ohm |
| EQ | |
| Input Channels EQ: | 2 Shelving/1 Generic |
| Description: | High:+/-15 dB @ 10 kHz Shelving, Mid:+/-15 dB @ 1,250 kHz, Bell Low:+/-15 dB @ 100 Hz Shelving. |
| Auxiliary Sends | |
| FX POST: | 1 |
| Internal Effects | |
| Send Effects: | 1 |
| Other Features | |
| Footswitch: | Yes |
| Electrical Specifications | |
| Power supply: | External |
| Voltage requirements: | 100 V - 240 V |
| Power consumption (MAX): | 12 W |
| Standard Compliance | |
| CE compliance: | Yes |
| Physical Specifications | |
| Cabinet/Case Material: | Metal |
| Colour: | Black |
| Size | |
| Height: | 79 mm / 3.11 inches |
| Width: | 210 mm / 8.27 inches |
| Depth: | 255 mm / 10.04 inches |
| Weight: | 1.8 kg / 3.97 lbs |
| Shipping Informations | |
| Package Height: | 122 mm / 4.8 inches |
| Package Width: | 378 mm / 14.88 inches |
| Package Depth: | 260 mm / 10.24 |
| Package Weight: | 2.75 kg / 6.06 |
